Description

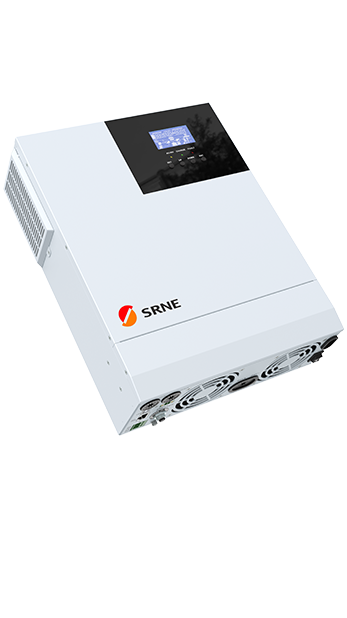

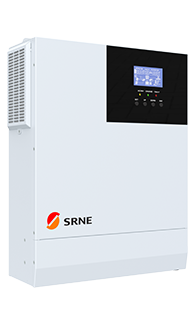

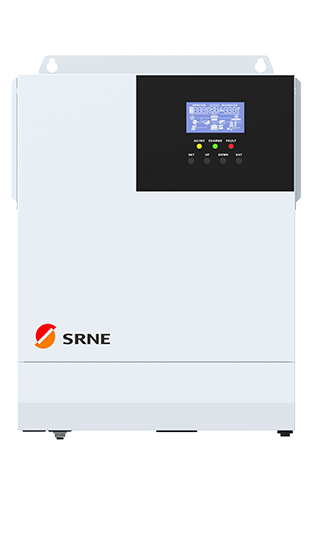

The HFP line adds parallel operation to SRNE’s HF platform, up to 6 units can run together, useful if a site’s power needs might grow beyond what one 5kW inverter covers. This particular model is built for a 145Vdc maximum PV open-circuit voltage, matching shorter panel string configurations.
- Rated output power: 5kW
- System voltage: 48V
- Max charge current: 80A
- Max PV open-circuit voltage: 145Vdc
- Parallel capacity: Up to 6 units
Check your planned panel string length against the 145Vdc rating before ordering, if your array is wired for a higher open-circuit voltage, the 500Vdc variant below is the correct fit instead.
