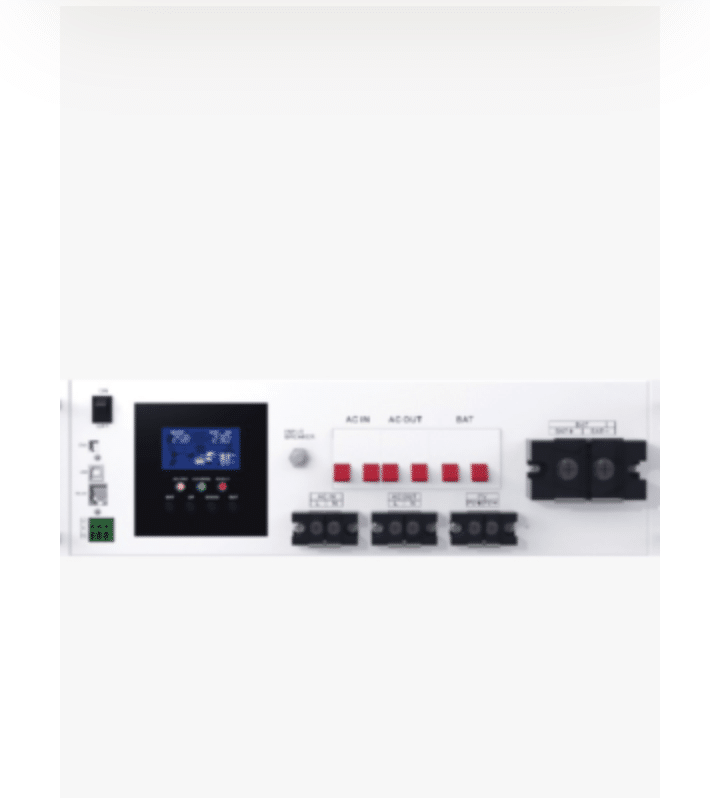

SRNE-HT Horizontal Type All-in-one Inverter Controller HT4850S80-145

High-capacity. Compact design. Built for efficient solar performance.

The SRNE HT4850S80-145 is a horizontal-mount, all-in-one inverter that combines a powerful 5kW pure sine wave inverter, 80A MPPT solar charge controller, and intelligent AC charger into a single compact unit. Designed for demanding solar setups, it’s ideal for homeowners, installers, and commercial users who need stable, high-output power with minimal installation complexity.

Key Features

• 5kW Pure Sine Wave Output
  Capable of powering high-demand appliances and equipment with smooth 230V AC output. Pure sine wave ensures safety for sensitive electronics.

• 80A MPPT Charge Controller (145V Max PV)
  Efficiently harvests solar power with a wide input range. Real-time MPPT tracking maximizes panel performance even under shading or fluctuating sunlight.

• Horizontal Installation Design
  Engineered for low-clearance walls or cabinet setups where vertical space is limited. Clean, organized mounting with easy wiring access.

• Optimized for 48V Battery Banks
  Fully compatible with lithium, AGM, gel, and lead-acid batteries. Intelligent charging ensures safe, long-lasting battery performance.

• Smart Source Prioritization
  Seamless switching between solar, battery, and grid power. Prioritize solar for efficiency, or grid for consistency—customize as needed.

• Built-In Safety Protections
  Overload, over-temperature, short circuit, reverse polarity, and overcharge protection are all standard.

• LCD Monitoring Panel
  View system status, charging info, load conditions, and battery data at a glance with an intuitive user interface.

Technical Specifications

• Rated Power: 5kVA / 5,000W

• Battery System: 48V

• Max PV Input Voltage: 145VDC

• MPPT Range: 60V – 115V

• Max PV Charging Current: 80A

• Output Voltage: 230V ±5%

• Output Waveform: Pure Sine Wave

• Efficiency: ≥93% (inverter), ≥99.9% (MPPT)

• Transfer Time: ≤10ms

• Mounting: Horizontal

• Approx. Weight: 13kg

Ideal Use Cases

• Medium to large homes with solar + battery systems

• Commercial backup power setups

• Off-grid or hybrid installations where space is limited

• Projects requiring clean, uninterrupted power with robust safety features
