SRNE-HT Horizontal Type All-in-one Inverter Controller HT4840S80-145

Built for reliable solar power performance in compact spaces

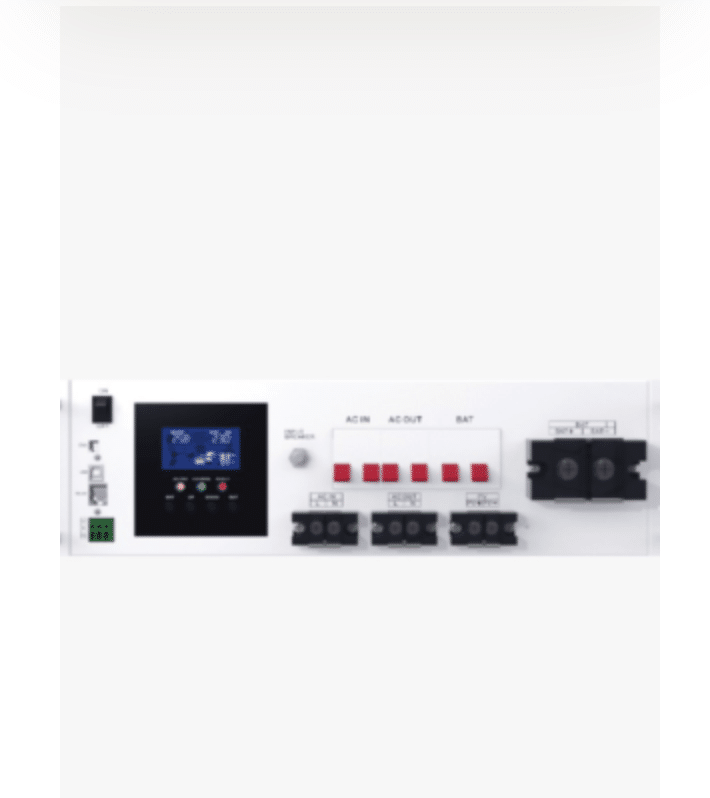

The SRNE HT4840S80-145 is a horizontal-mount all-in-one solar inverter system that combines a 4kW pure sine wave inverter, a high-efficiency MPPT solar charge controller, and an intelligent battery charger into a single, space-saving unit. It’s ideal for residential or commercial setups that need clean, uninterrupted power with minimal installation footprint.

Key Features

• Integrated 4kW Inverter
  Delivers stable 230V AC power for home appliances, tools, and sensitive electronics. The pure sine wave output ensures compatibility with all loads.

• MPPT Charge Controller – 80A / 145VDC
  Tracks the optimal power point of your solar panels in real time, boosting charging efficiency and minimizing energy loss.

• Compact Horizontal Design
  Wall-mountable unit designed for tight or low-ceiling spaces, perfect for equipment rooms or off-grid containers.

• 48V Battery Support
  Compatible with lithium-ion, AGM, gel, and lead-acid batteries. Smart charging logic adjusts based on battery type for longevity and safety.

• Smart Power Switching
  Automatically switches between solar, battery, and grid sources to maintain uninterrupted power flow.

• Comprehensive Protection
  Includes protection against overcharging, short circuits, overloads, and reverse polarity.

• Easy Monitoring
  LCD interface displays real-time system performance and status, with configuration options for voltage, charging, and load priority.

Technical Details

• Output Power: 4kVA / 4kW

• Battery Voltage: 48V

• Max PV Input Voltage: 145VDC

• MPPT Range: 60V–115VDC

• Max Solar Charging Current: 80A

• Output Voltage: 230V ±5%

• Waveform: Pure sine wave

• Efficiency: ≥93% (inverter), ≥99.9% (MPPT)

• Transfer Time: ≤10ms

• Mounting: Horizontal

• Weight: Approx. 12.5kg

Best For:

• Homes and small businesses with moderate energy demand

• Off-grid setups requiring smart energy management

• Installations where vertical space is limited

• Inverter upgrades or new solar + battery systems
