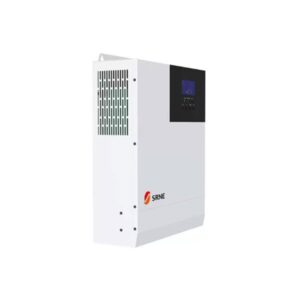

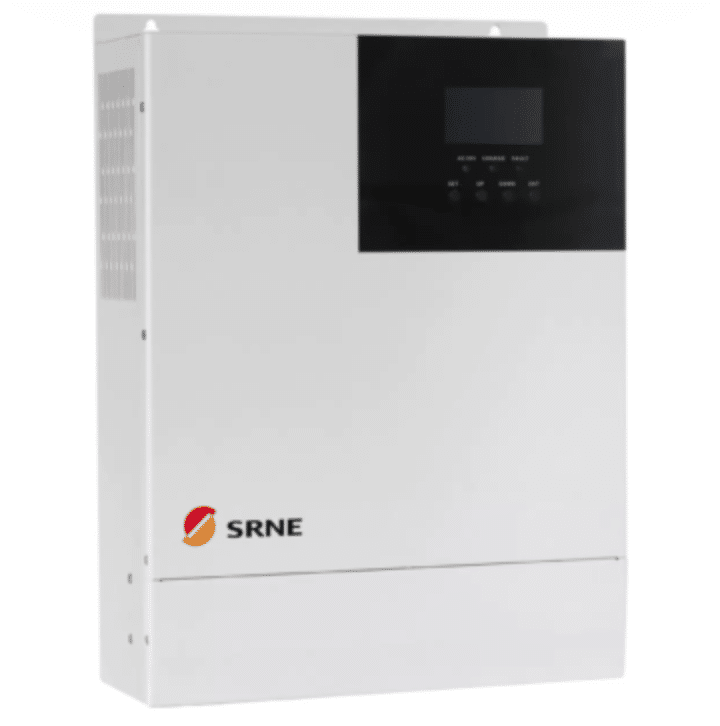

SRNE-Higher PV Input Solar Charge Inverter SR-HF4830S60-H

The SRNE SR-HF4830S60-H is a 3kVA / 3kW hybrid inverter built for homeowners and small business owners looking to maximize their solar investment. With a higher PV input voltage and advanced MPPT charging, it delivers stable, efficient energy conversion even under fluctuating solar conditions.

 Key Features:

• Higher PV Input Voltage: Supports up to 500VDC PV input — allowing longer solar string configurations and fewer panels in parallel.

• Efficient MPPT Charging: Advanced maximum power point tracking boosts solar harvest and ensures faster battery charging.

• All-in-One Design: Combines inverter, solar charger, and AC charger in one compact unit.

• Pure Sine Wave Output: Safe for sensitive electronics and appliances.

• Flexible Battery Support: Compatible with lithium-ion, lead-acid, and gel batteries.

• Built-in LCD Display: Clear readout of system status, settings, and error codes.

• Auto Transfer Switch: Automatically switches between solar, battery, and grid to maintain power continuity.

• Optional WiFi Monitoring: Supports external WiFi/GPRS module for remote system tracking (sold separately).

Technical Specifications:

• Rated Output Power: 3kVA / 3kW

• Battery Voltage: 48VDC

• Max PV Input Voltage: 500VDC

• Recommended MPPT Range: 120V – 450VDC

• Max PV Input Power: 4000W

• MPPT Efficiency: ≥99.9%

• AC Output Voltage: 230VAC ±5%

• Transfer Time: ≤10ms

• Waveform: Pure Sine Wave

• Dimensions: 485 x 390 x 130 mm

• Weight: Approx. 10kg

Ideal for:

• 2–3 bedroom homes

• Shops and small businesses

• Backup power in off-grid or unstable grid areas

Why Choose the SRNE SR-HF4830S60-H?

It’s a perfect balance between power, affordability, and flexibility. With its high-voltage PV input and smart battery management, this model is tailored for the realities of solar energy use in Nigeria — where every kWh counts.
